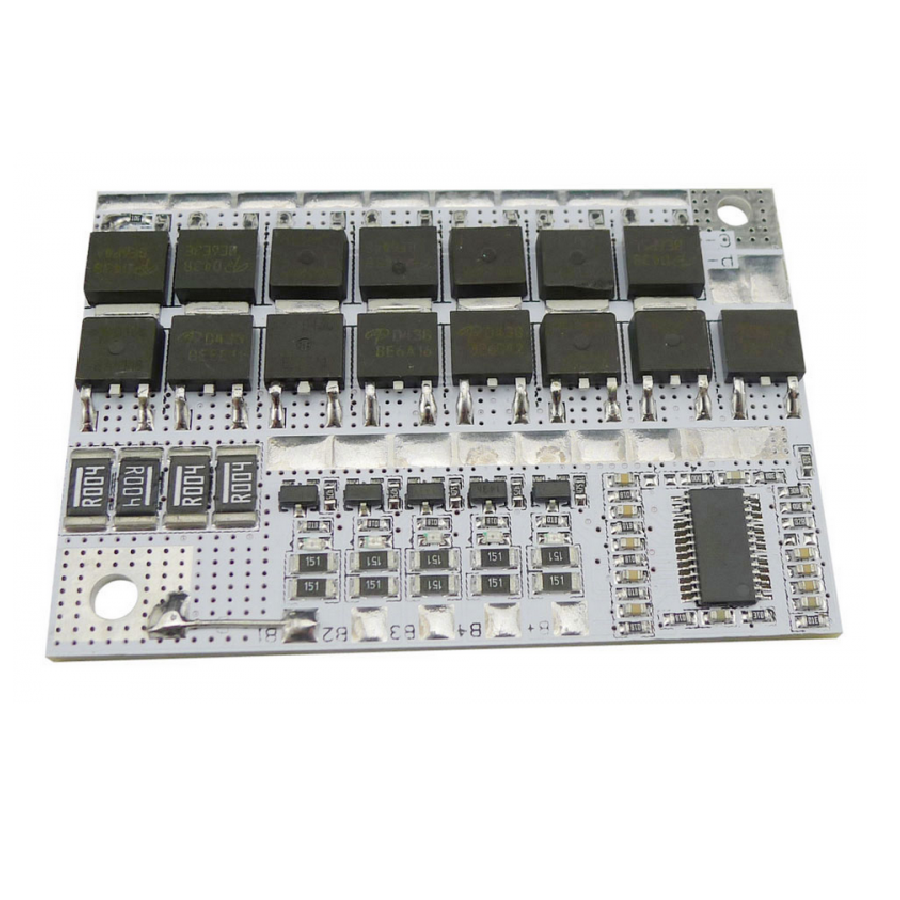

A common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharges current 80A, charging current 60A. Can use for LMO. Ternary lithium battery. LCO(3.7V)battery packs etc. battery. LCO(3.7V)battery packs etc.
Features
Light weight
Best for your LifePo4 battery
Easy to use
Easy to connect
Low power consumption
Specification
| Model | 4S 100A LiFePO4 |
| Single cell battery overcharge protect voltage | 3.61-3.69 V |
| Single cell battery overcharge protect recover voltage | 3.5-3.6V |
| Overcharge protect delay | 1.5-2.5S |
| Overcharge protect Current | 100A |
| Over-discharge protect Current | 100A |
| Disconnect protect | Yes |
| Shortage protect | Yes |
| Charging current | 60A |
| Voltage alance accuracy | 3.355-3.455 V |
