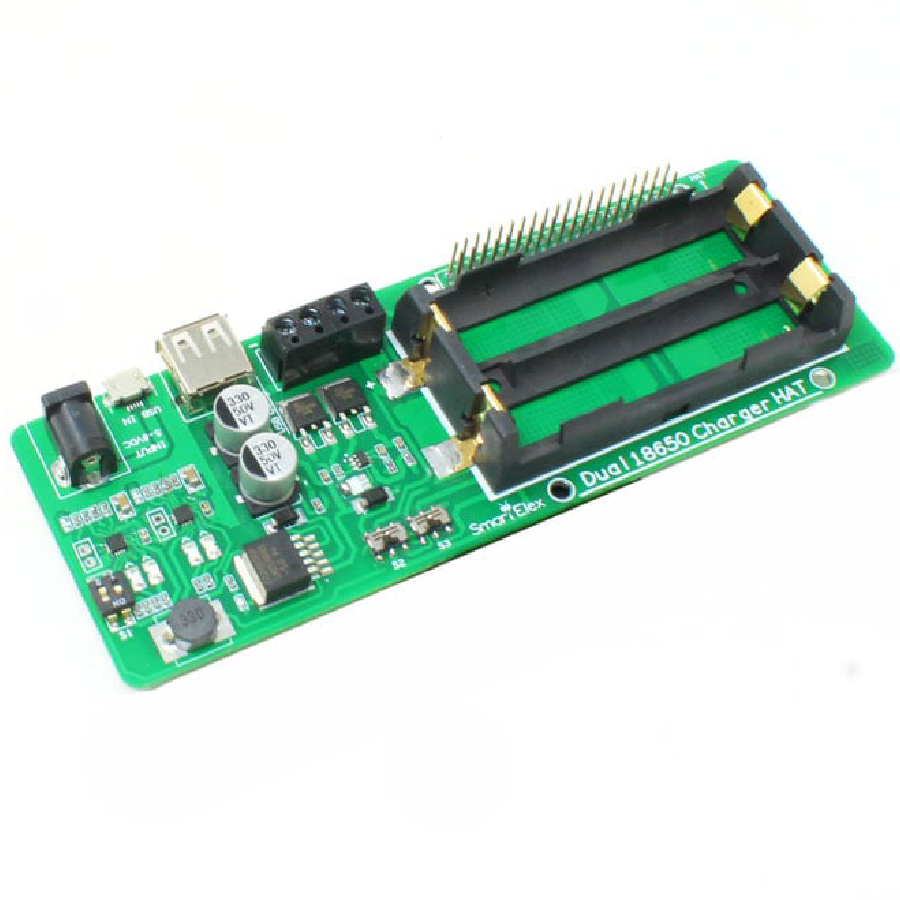

This module will charge up to 1A charge current. Protects against overvoltage and Undervoltage. SmartElex 2s LI-ION charger board has a status five LED’s which indicates the Status of battery charging / Full charge/ Battery detects/Battery absent etc. You can get output 5V from USB TYPE A and 2 pin connector and also you can get a series voltage of a cell in another connector.
Features
| Input Interface | Micro USB port/ DC jack |
| Over-Voltage Detection Feature | Yes |
| Under-Voltage Detection Feature | Yes |
| Charging indicator LED | Charging / Full charge/ Battery detects |
| Charging through Micro-USB | Yes |
| On- Board 18650 cell socket | Yes |
Specification
| For Battery Model | 18650 |
| Input Voltage | 5V DC |
| Max Input Voltage | 6V DC |
| A full charge voltage | 4.2V DC |
| Charge Current | up to 1A /cell |
| Operating Temperature | -20°C to 70°C |
| Length (mm) | 160 |
| Width (mm) | 55 |
| Height (mm) | 25 |
| Weight (gm) | 67 |
