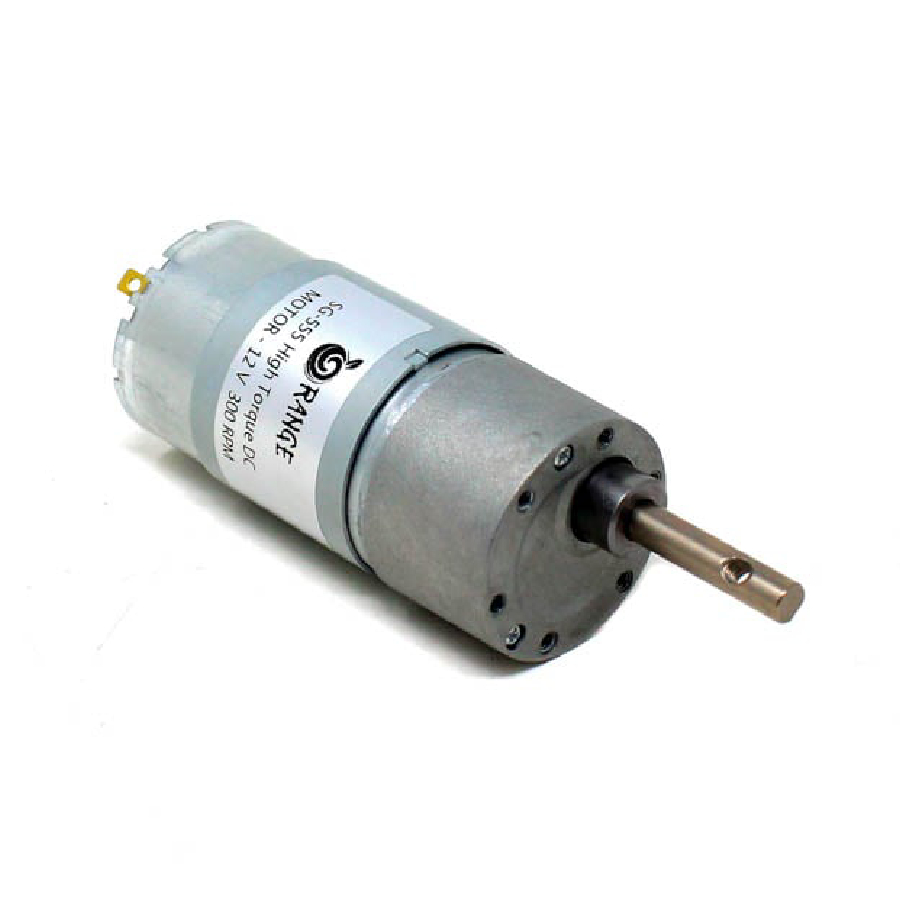

This Orange OG555 12V 300RPM DC motor is mostly useful for DIY Projects. The motor having a rated torque of 42.6 N-cm with a Gear Reduction of 30K. The applications of this motor are Central air conditioning valve, Amusement equipment, Coin refund devices, Grill, Oven; Peristaltic pump, ATM bank automatic system, Medical equipment, Office equipment, Household appliance, Automatic actuator and many more.
Specification
| Model No. | OG-555129000-30K |
| Recommended Voltage (DC) | 12V |
| Input Voltage Range (DC) | 6V to 15V |
| Rated RPM (at 12V) | 300 |
| Gear Reduction | 30K |
| Rated Torque (N-cm) | 42.6 |
| No- Load Current (A) | 0.52 |
| Full Load Current (A) | 2.775 |
| Shaft Diameter (mm) | 6mm |
| Motor Body Diameter (mm) | 37 |
| Motor Body Lenth (mm) | 94 |
| Motor Shaft Length (mm) | 27mm |
| Motor Shaft Type | D cut without hole |
| Back shaft for Encoder Available | Yes |
| Compatible Encoder Model | OE-37 |
| Operating Temperature | -30℃ to 60℃ |
