These battery packs in diverse ranges to fulfill 7.4V to 14.8 V and differential capacity requirements.
Features
High energy density
Capacity, resistance, Voltage, platform time consistency is good.
Good consistency and low self-discharge.
Very Small in size and weight compared to Ni-Cd, Ni-MH, and Lead Acid Batteries
Full Charge in 40 to 90 minutes depending upon the charger
Long life with full capacity for up to 500 charge cycles

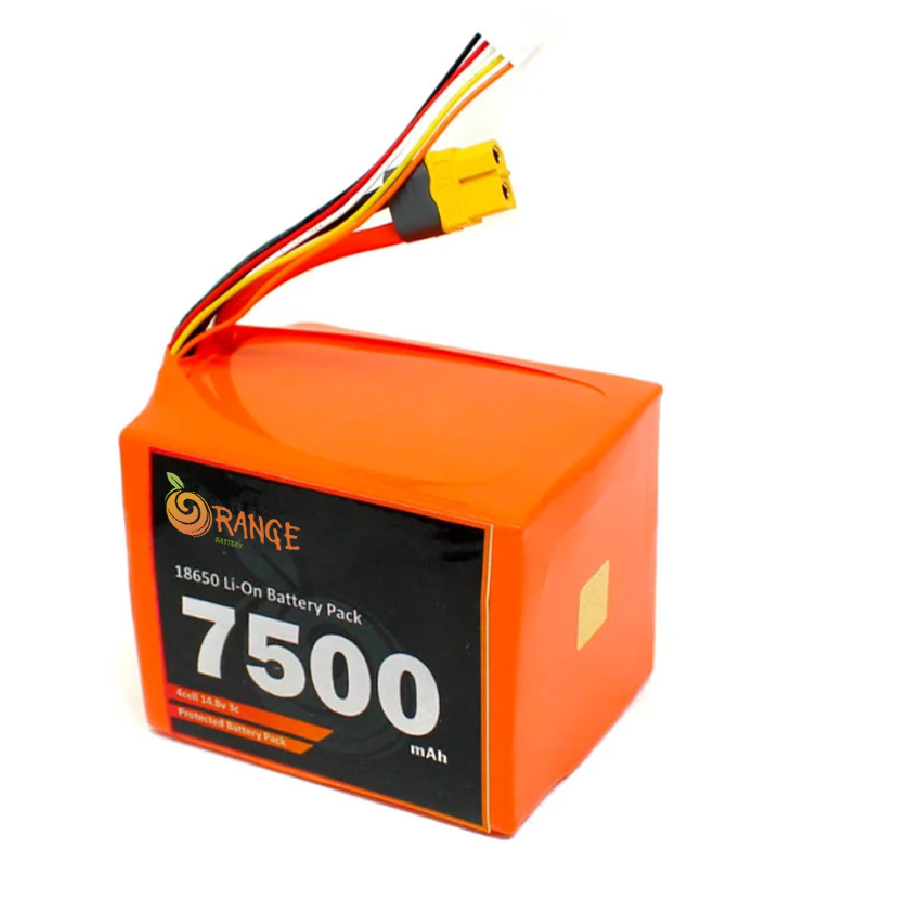

12 x Li-ion 11.1V 2500mAh cells (4S3P)
Inbuilt (BMS) battery protection circuit
The battery will work within a voltage range of 11.1 to 14.8V.
The BMS will cut off the battery at approx. 12 V to prevent over-discharging.
High performance and capacity
Flat top to suit many devices fitting.
Specification
| Battery Type | Li ion 18650 |
| No. of Battery Cell | 12 x Li-ion 3.7V 2500mAh cells (4S3P) |
| Nominal capacity | 7500mAh |
| Nominal Output Voltage (V) | 14.8 |
| Cycle life / 80% | ≥ 500 |
| Charging temperature | 0 – 45°C |
| Discharging Temperature | 20 – 60°C |
| Charge/Discharge Connector | XT60 Female connector |
| Length (mm) | 82 |
| Width (mm) | 70 |
| Height (mm) | 70 |
| Weight (gm) | 690 |
