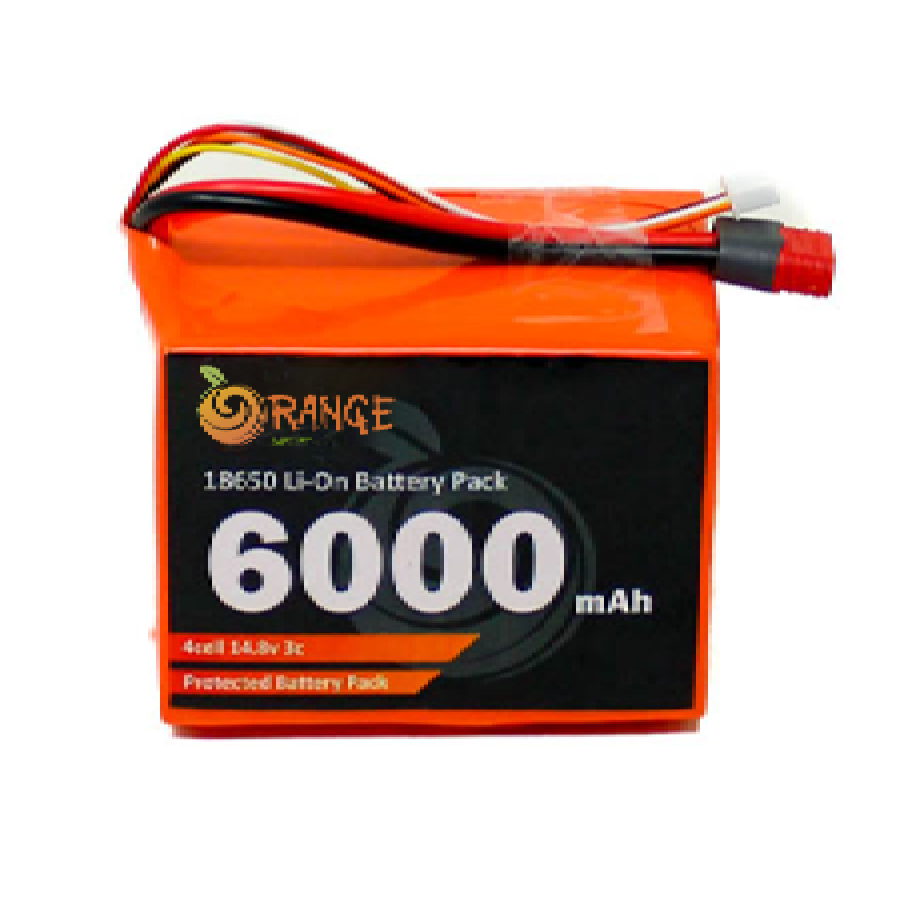

This battery pack is made up of the best quality tested ICR 18650 2000mAh 20C Lithium-Ion Batteries and BMS circuit. It is small in size and weight compared to Ni-Cd, Ni-MH, and Lead Acid Batteries. With the inbuilt Charge protection circuit, the battery pack can be directly charged with the DC power Adapter, so need not use the specialized battery chargers and worry about overcharging.
Features
High energy density
Capacity, resistance, Voltage, platform time consistency is good.
Good consistency and low self-discharge.
Very Small in size and weight compared to Ni-Cd, Ni-MH, and Lead Acid Batteries
Full Charge in 40 to 90 minutes depending upon the charger
Long life with full capacity for up to 500 charge cycles
12 x Li-ion 11.1V 2000mAh cells (4S3P)
Inbuilt (BMS) battery protection circuit
The battery can be charged to a maximum of 25.2 V on a full charge.
The battery will work within a voltage range of 11.1 to 14.8V.
The BMS will cut off the battery at approx. 12 V to prevent over-discharging.
The maximum safe charging current is 7000 mA.
Recommend charging current is maximum 1000mA for longer life
High performance and capacity
Flat top to suit many devices fitting.
Specification
| Battery Type | Li ion 18650 |
| No. of Battery Cell | 12 x Li-ion 3.7V 2000mAh cells (4S3P) |
| Nominal capacity | 6000mah |
| Nominal Output Voltage (V) | 14.8 |
| Cycle life / 80% | ≥ 500 |
| Charging temperature | 0 – 45°C |
| Discharging Temperature | 20 – 60°C |
| Length (mm) | 80 |
| Width (mm) | 70 |
| Height (mm) | 44 |
| Weight (gm) | 608 |
