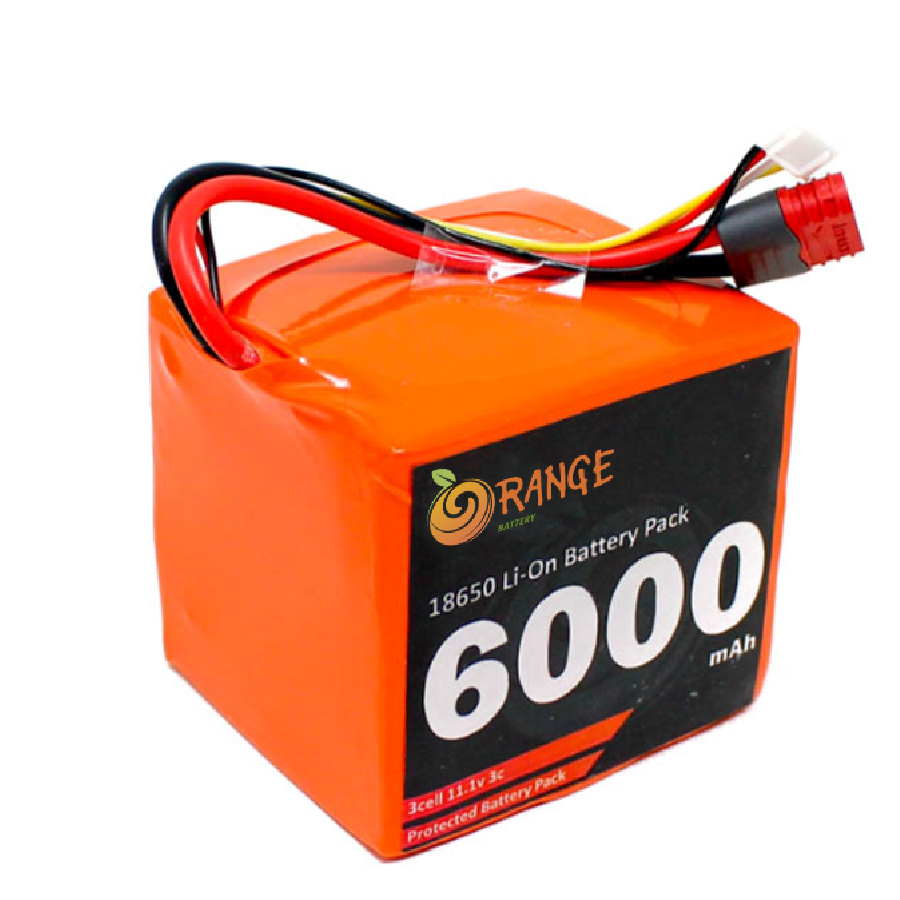

This battery pack is very convenient to recharge and install in your project requirement with a JST-XH connector for Charging and a T connector for Discharging or connecting to your applications.
Features
High energy density
Capacity, resistance, Voltage, platform time consistency is good.
Good consistency and low self-discharge.
Very Small in size and weight when compared with Ni-Cd, Ni-MH, and Lead Acid Batteries.
Full Charge in 40 to 90 minutes depending upon the special charger.
Long life with full capacity for up to 500 charge cycles.
Inbuilt (BMS) battery protection circuit.
Good consistency and low self-discharge.
The battery will work within a voltage range of 11.1V to 12.6V.
The BMS will cut off the battery at approx. 5 V to prevent over-discharging.
The maximum safe charging current is 6000 mA.
The recommended charging current is a maximum of 3000mA for longer life
High performance and capacity
Flat top to suit many devices fitting.
Specification
| Model No. | Orange 6000mah-11.1v (3s3p) |
| Nominal Capacity (mAh) | 6000 |
| Nominal Voltage (V) | 11.1V |
| Max. Charging Voltage (V) | 12.6 |
| Charging Cut-off Voltage (v) | 9.6 |
| Max. Charging Current | 1C A (6000ma) |
| Nominal Charge Current | 0.5C A (3000ma) |
| Maximum Discharge Current (A) | 3C A (18000ma) |
| Nominal Discharge Current | 1C A (6000ma) |
| Nominal Energy (wh) | 66.6 |
| Cycle Life /80% | ≥500 |
| Discharge Plug | T-Connector |
| Length (mm) | 72 |
| Width (mm) | 61 |
| Height (mm) | 46 |
| Weight (gm) | 480 |
