Orange Li-Fe cells are designed to be used for Electric vehicles as well as Solar and Telecom applications. At Orange, the Li-Fe cells go through a long process of testing for meeting the high standards of the industry. Every cell at Orange has to pass through the internal quality standard and then only sent to our customers.
Features
Safest Lithium Chemistry.
High specific energy and High capacity.
Long Life Cycles and extended shelf life.
High capacity, low internal resistance, good coulombic efficiency.
The orange team takes a great effort to meet projects on time.
Specification

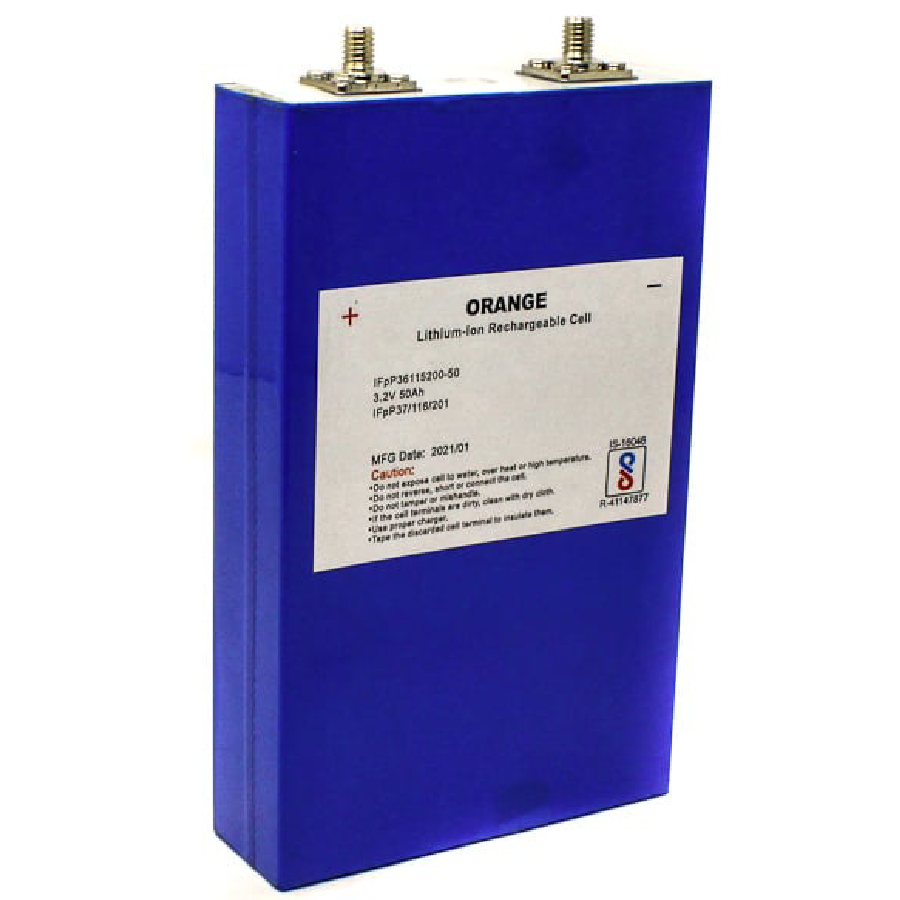

| Model No. | IFpP36115200-50 |
| Limited Charge Voltage | 3.65V |
| Nominal Voltage (V) | 3.2 |
| Rated Capacity | 50Ah |
| Max. Charge Current | 1C |
| Max. Discharge Current | 3C |
| Discharge Cut-off Voltage | 2.5V |
| Operating Temperature | Charging: 0ºC – 45ºV Discharging: -20ºC – 60ºC |
| Impedance | ≤0.7mΩ |
| Length (mm) | 189 |
| Width (mm) | 115 |
| Height (mm) | 36 |
| Weight (gm) | 1440 |
