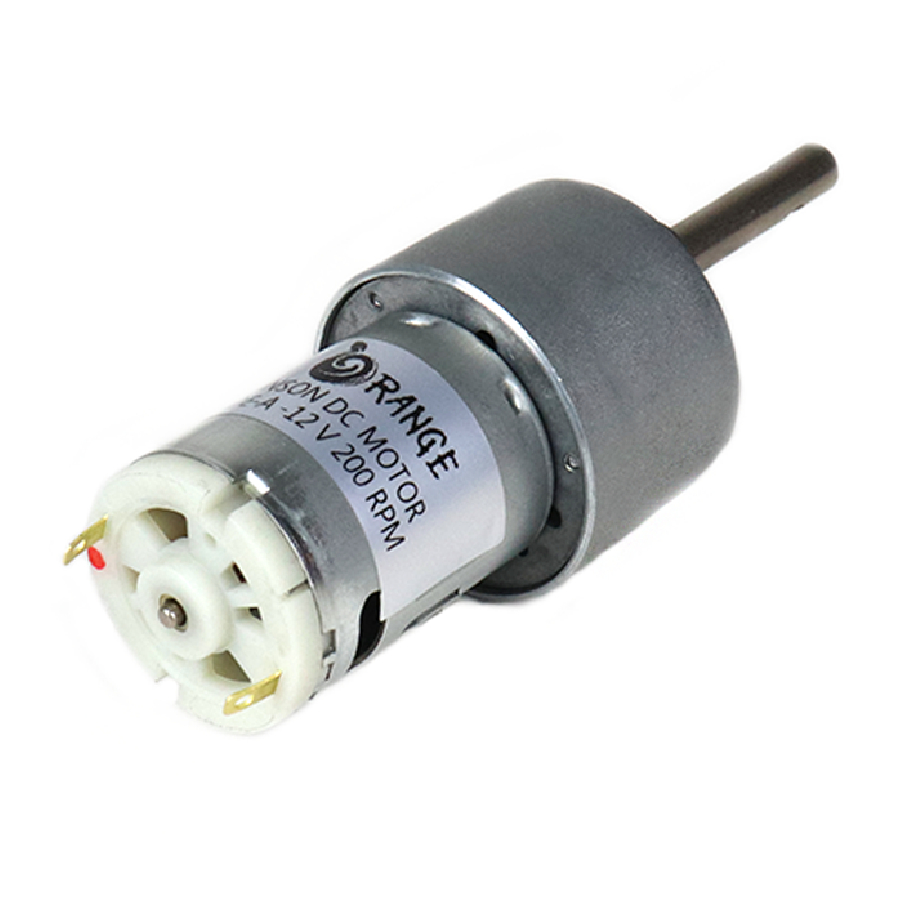

This motor is a simple DC motor coupled with Metal Gearbox for delivering more power/torque. Compact size and massive torque makes them stand-tall in the market. This Orange Johnson Geared Motor has an operating voltage of 6V to 18V. It is rated at 12V for efficient performance, provides a speed of 200 RPM and torque of 56.1 N-cm.
Specification
| Brand | Orange |
| Operating Voltage (VDC) | 6 ~ 18 |
| Nominal Voltage (V) | 12 |
| Rated Base Motor RPM | 18000 |
| Gear Ratio | 90 : 1 |
| Gear Material | Metal |
| Rated Speed (RPM) | 200 |
| Rated Torque (N-cm) | 56.1 |
| Stall Torque (N-cm) | 350 |
| Rated Power (W) | 8 |
| No-Load Current (mA) | 339 |
| Load Current Max (mA) | 1861 |
| Input Power (W) | 22.66 |
| Output Power(Watt) | 9.756 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 30 |
| Gearbox Diameter (mm) | 37 |
| Motor Diameter(mm) | 27 |
| Motor Length (mm) | 62 |
| Operating Temperature (°C) | -30 to 60 |
| Weight (gm) | 160 |
