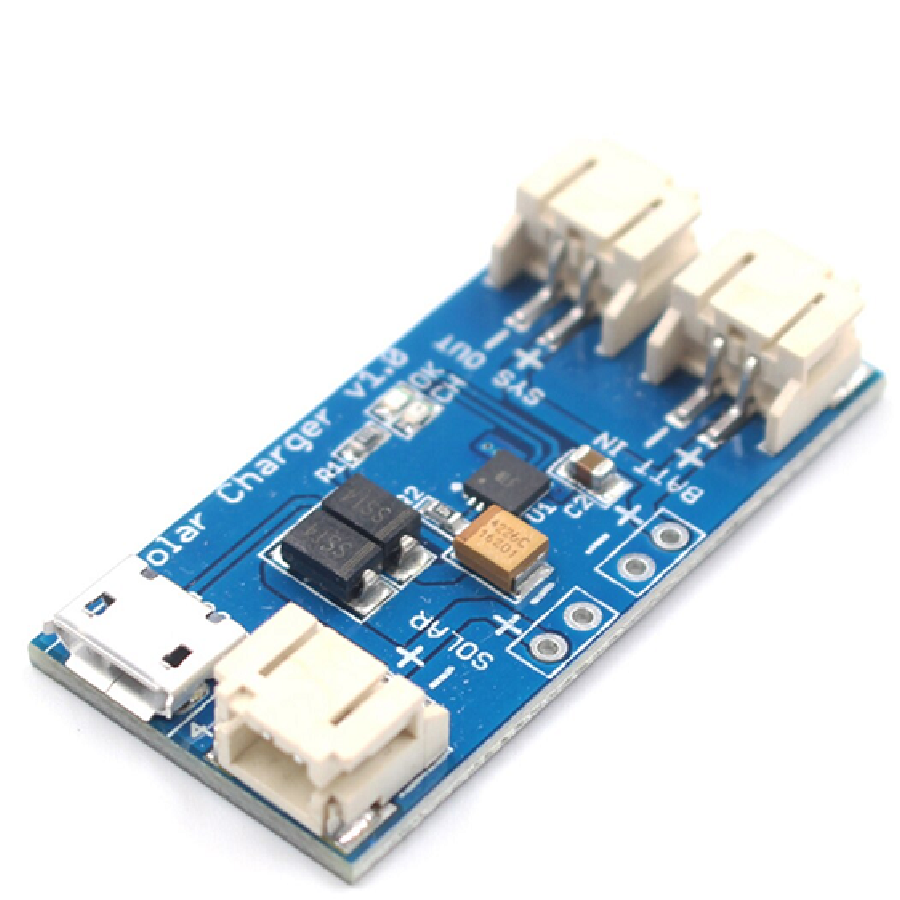

The output of the Solar Charger is intended to charge a single polymer lithium-ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It’s recommended that batteries not be charged at greater than their capacity rating.
Features
Short circuit protection
Continuous Charge Current Up to 500mA
Support USB Charge (Micro-USB Connector)
Specification
| Input Voltage Range | 4.4 to 6VDC |
| Max Charge Current | 500mA |
| Connector | 2-Pin Connectors |
| Battery Status Indicator | Red: Charging Green: Charged |
| Length (mm) | 39 |
| Width (mm) | 19 |
| Height (mm) | 7 |
| Weight (gm) | 5 |
