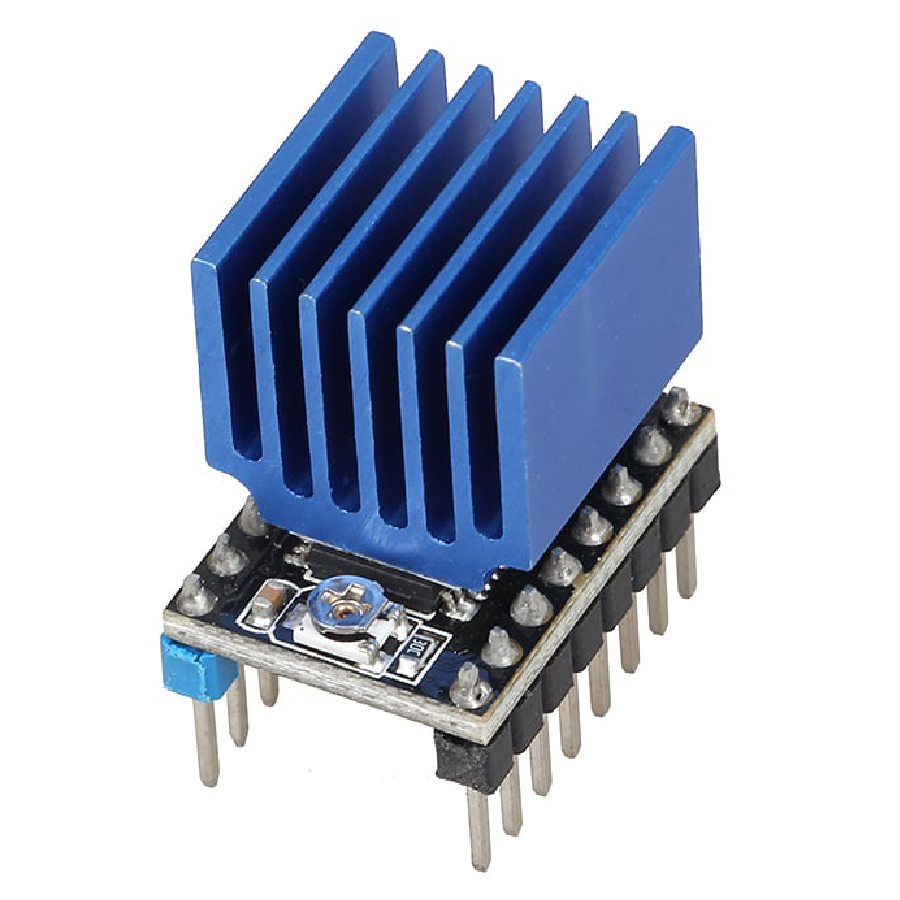

The LV8729 is a PWM current-controlled micro step bipolar stepping motor driver. This driver can perform eight times of excitation of the second phase to 32W1-second phase and can drive simply by the CLK input.
It has a wide range of Operating voltage range i.e. 6V-36V, the proposed voltage is 12V Support subdivisions of 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 with product Process of four-layer PCB board. In the 64 subdivision or 128 subdivision controller, it has a better ultra-quiet effect.
Features
1. In 64 subdivisions or 128 subdivisions to achieve a better ultra-quiet effect.
2. Operating voltage: 6V-36V, the proposed voltage is 12V.
3. The maximum current is 1.5A, the default is 0.8A.
4. Segment: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128.
5. You must add the heat sink to make the heat dissipation better (please be sure to operate with a large fan to help to cool the Module).
Specification
| Model | LV8729 |
| Type | Stepper Motor Driver |
| Maximum drive current | 1.8A |
| Maximum voltage | 36V (Normal Operation 12V) |
| Supported segment | 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 |
| Product Craft | Four-layer PCB board |
| Dimensions in mm (LxWxH) | 15 x 14.5 x 13.5 (Heatsink) 20 x 15 x 12 (Driver Module) |
| Weight(gm) | 5 |
