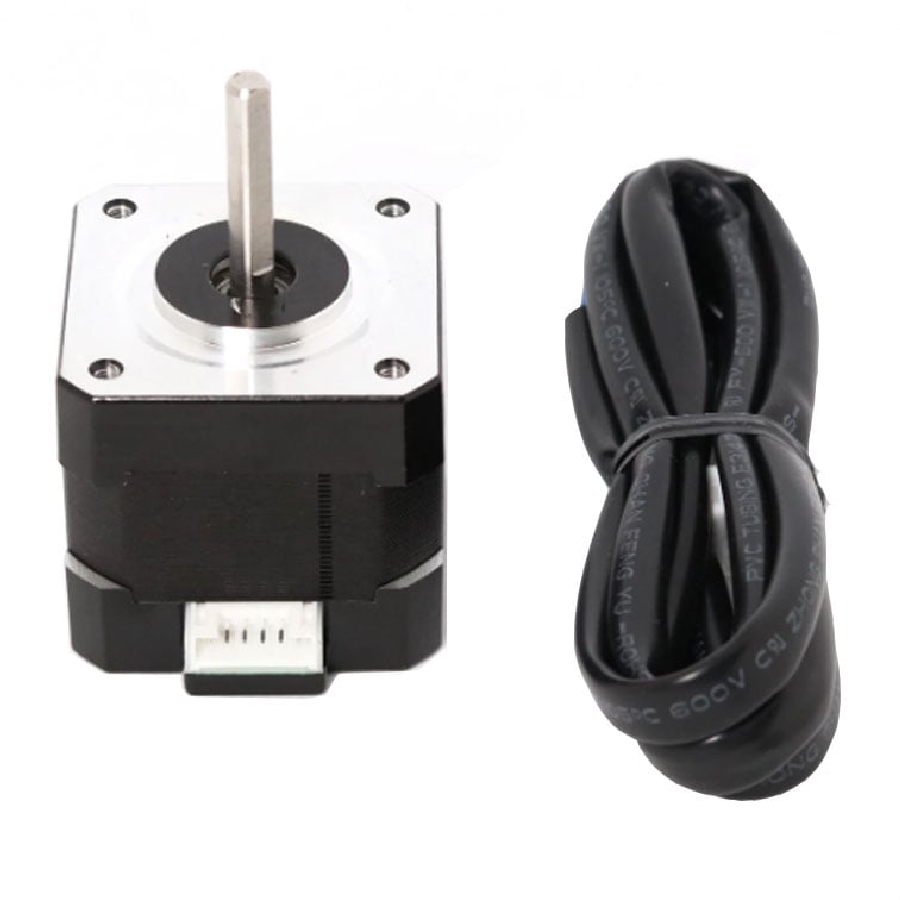

This motor is lighter and shorter than a typical NEMA17 motor, however, it produces almost as much torque. It is suitable for driving geared or direct extruders and is used on our Titan extruder. It is also suitable for printer axes, provided they are light-duty, eg: a dual leadscrew Z axis that uses 2 motors. The package also comes with a 3D printed bracket to help you mount a Titan extruder onto your 3D printer.
Specification
| Model | NEMA 17 |
| Step Angle | 0.9° |
| Steps Per Revolution | 400 |
| Rated Voltage | 2.8V |
| A Phase | 1.68 |
| Holding Torque | 3.5kg/cm (48.6oz/in) |
| Body Size | 40mm |
| Output Shaft Length(mm) | 25 |
| Output Shaft diameter(mm) | 5 |
| Cable Length(Meter) | 1 |
| Weight (gm) | 165 |
