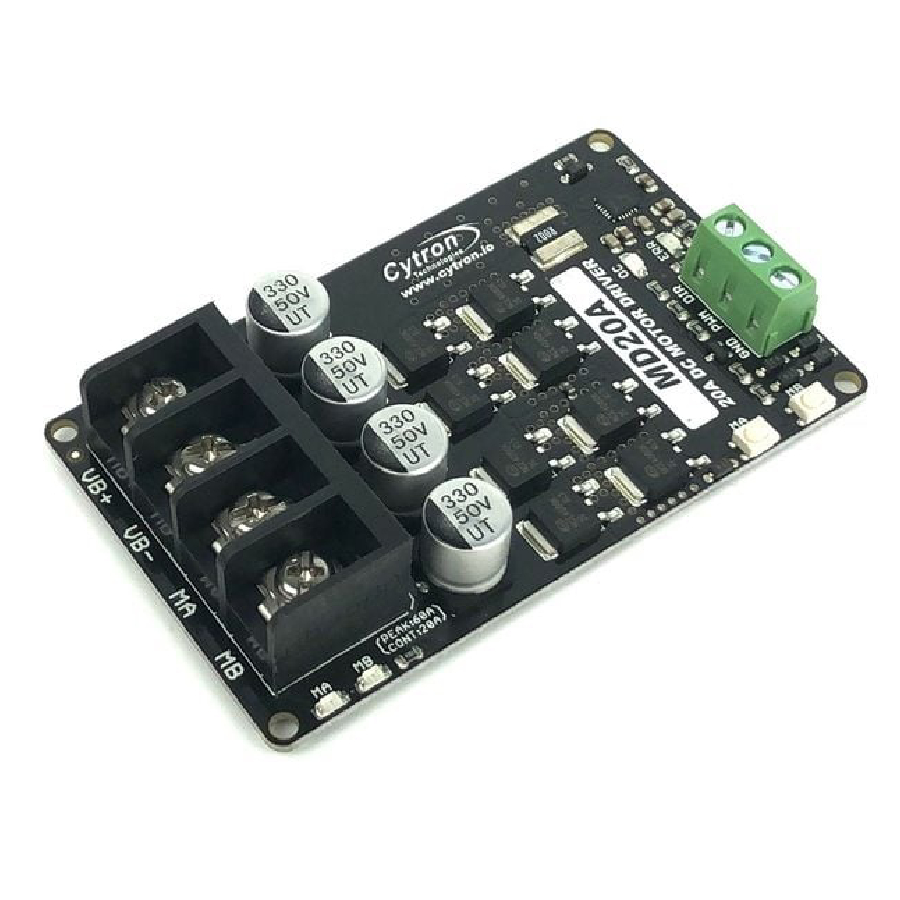

Features
Bidirectional control for one brushed DC motor.
Buttons for quick testing.
LEDs for motor output state.
PWM and DIR inputs.
Inputs compatible with 1.8V, 3.3V, 5V and 12V logic (Arduino, Raspberry Pi, PLC, etc).
PWM frequency up to 20kHz (Output frequency is the same as input frequency).
Compatible with sign-magnitude and locked-antiphase PWM operation.
Overcurrent protection with active current limiting.
Temperature protection.
Undervoltage shutdown.
Example Application: Automated Guided Vehicle (AGV), Solar Tracker, Game Simulator, Mobile Robot, Automation Machine.
Specification
| Model | MD20A |
| Input Supply voltage (V) | 6 ~ 30 |
| Input Current (A) | 20A continuous |
| Peak Current (A) | 60 |
| PWM Frequency | 20 KHz |
| Length (mm) | 86 |
| Width (mm) | 52 |
| Height (mm) | 18 |
| Weight (gm) | 43 |
