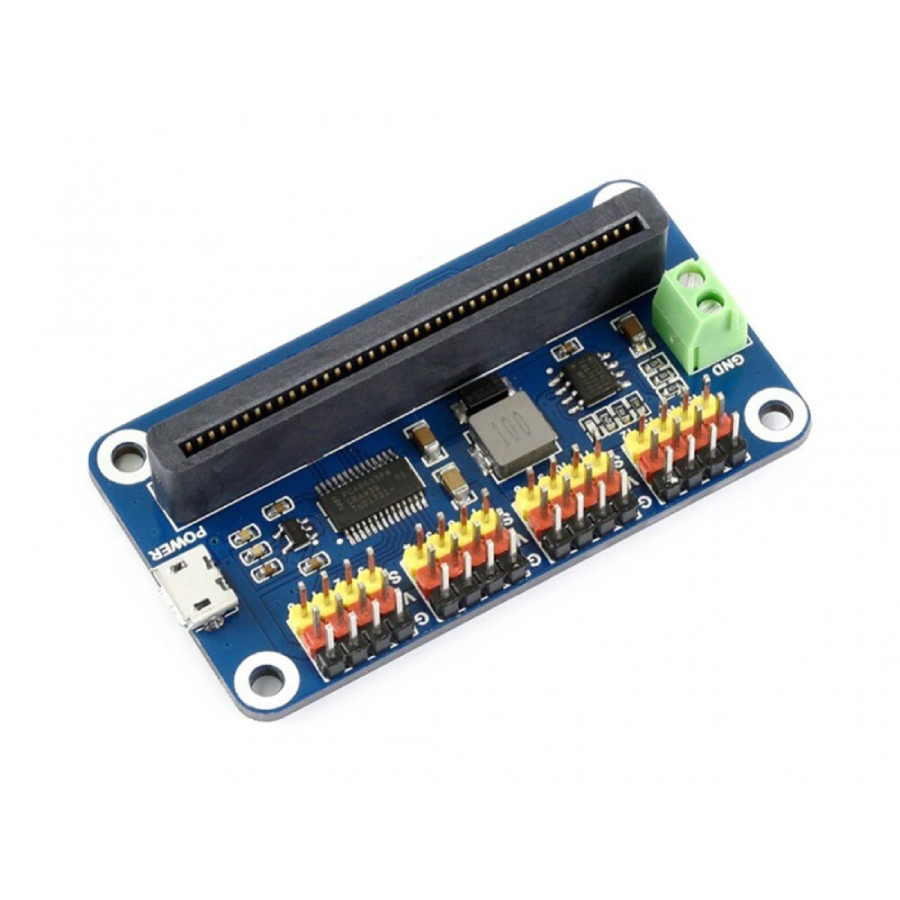

Features
micro: bit edge connector, directly pluggable
I2C controlled, using only 2 pins
Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
Integrates 5V regulator, up to 3A output current, can be powered from the battery through VIN terminal
Standard servo interface supports commonly used servo such as SG90, MG90S, MG996R, etc.
Reserved I2C control pins, allows working with other control boards
Comes with development resources and manual (micro: bit graphical examples like Bluetooth/2.4G wireless remote control)
Specification
| Recommended Power Supply | 5V |
| Logic Input (V) | 3.3 |
| Driver Model | PCA9685 |
| Interface Type | I2C |
| Mounting Holes Diameter (mm) | 3 |
| Length (mm) | 65 |
| Width (mm) | 33 |
| Height (mm) | 12 |
| Weight (gm) | 17 |
