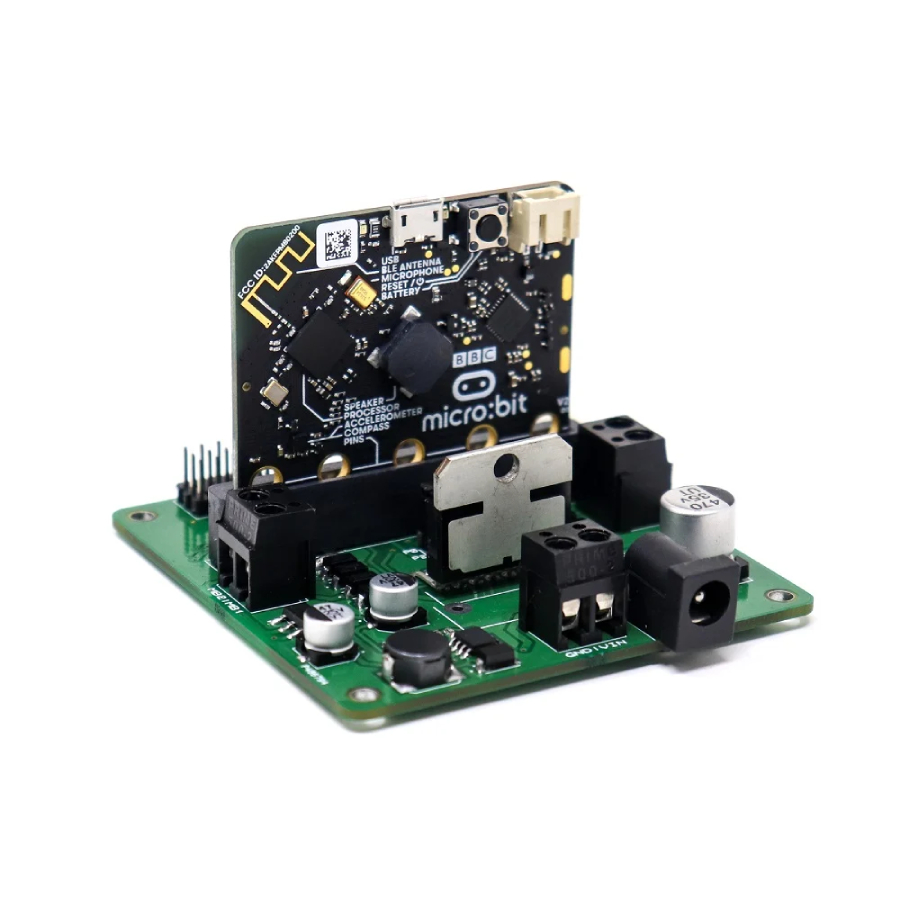

SmartElex Micro:Bit L298n Driver is a motor driver based on micro:bit. It is integrated with L298n motor driving chip, which is used to drive two motors with a 2A peak DC single-channel current. It has also integrated 13 SVG ports and 1 I2C communication port, These ports allow you to extend with various sensors and electric modules. SmartElex Micro:Bit L298N Motor Driver is one more addition to SmartElex’s product portfolio to provide more smartness to your application..!
Features
Wide 7 V to 24 V motor operating voltage.
Continuous 1A maximum current without a heat sink.
Two brushed DC motor bidirectional control.
PWM frequency up to 20 kHz.
Supports 5v and 3v Sensors
Power Status LED.
5 mm standard DC plug-in jack for Input supply.
On-Board DC motor Driver L298N.
Specification
| Input Voltage (V) | 7 ~ 24 |
| Max. Continuous Current | 1A |
| Peak Motor Current | 2A@10s |
| PWM Frequency | 20Khz |
| Length (mm) | 72 |
| Width (mm) | 70 |
| Height (mm) | 21 |
| Weight (gm) | 45 |
