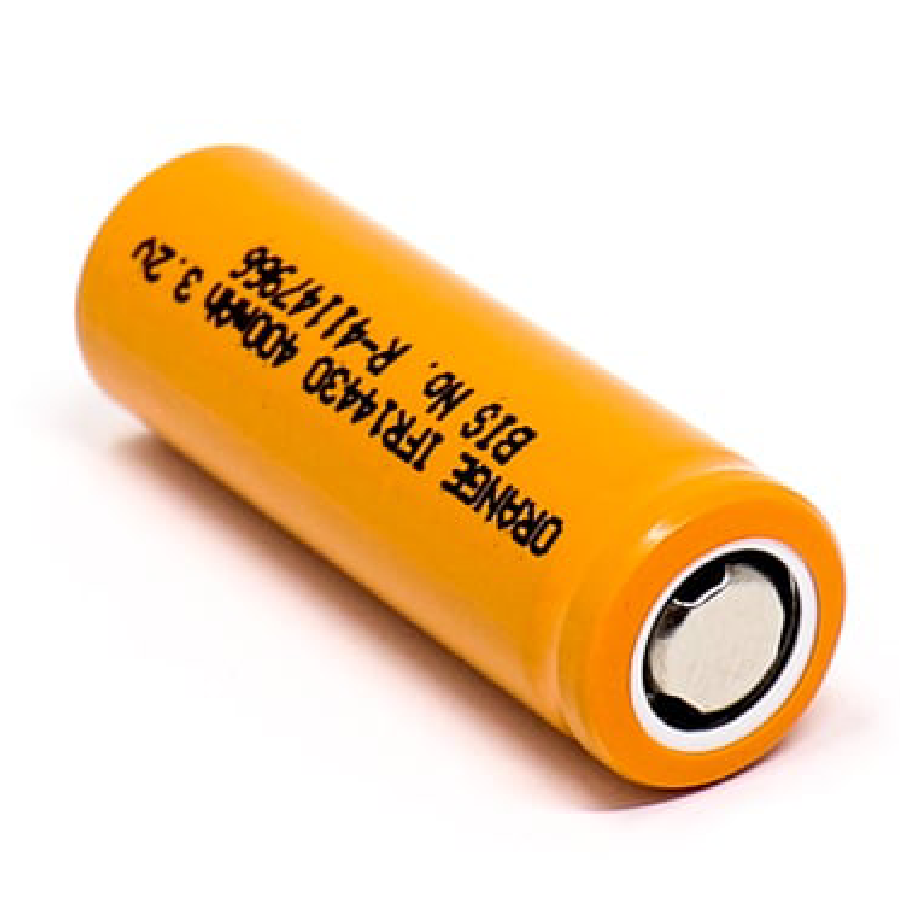

LiFePO4 Battery IFR 14430 3.2V 400mAh is one of the best rechargeable batteries from Orange with a good battery capacity of 400mAh & 3.2-volt output.
Features
Shape: Cylindrical Battery
Battery Type: LiFePO4 Battery
High performance and capacity
Flat top to suit many devices fitting
Suitable for portable devices
Specification
| Model No. | IFR 14430 |
| Capacity (mAh) | 400 |
| Output Voltage (VDC) | 3.2 |
| Discharge Voltage | 2V |
| Charging Voltage | 3.65V |
| Standard Charge | Constant Current: 0.2 C 5A Constant Voltage: 3.6 5V Cut-off: 0.02 C 5A |
| Standard Discharge | Constant Current: 0.2 C 5A End Voltage: 2.0V |
| Fast Charge | Constant Current: 1C 5A Constant Voltage: 3.65V Cut off: 0.02 C 5A |
| Fast Discharge | Constant Current: 1C 5A End Voltage: 2.0V |
| Max. Continuous Charge Current | 1C 5A |
| Max. Continuous Discharge Current | 3C 5A |
| Operation Temp. Range | Charge: 0 ~ 45ºC Discharge: -10 ~ 60ºC |
| Width (mm) | 14 (Body Diameter) |
| Height (mm) | 43.4 |
| Weight (gm) | 15 |
