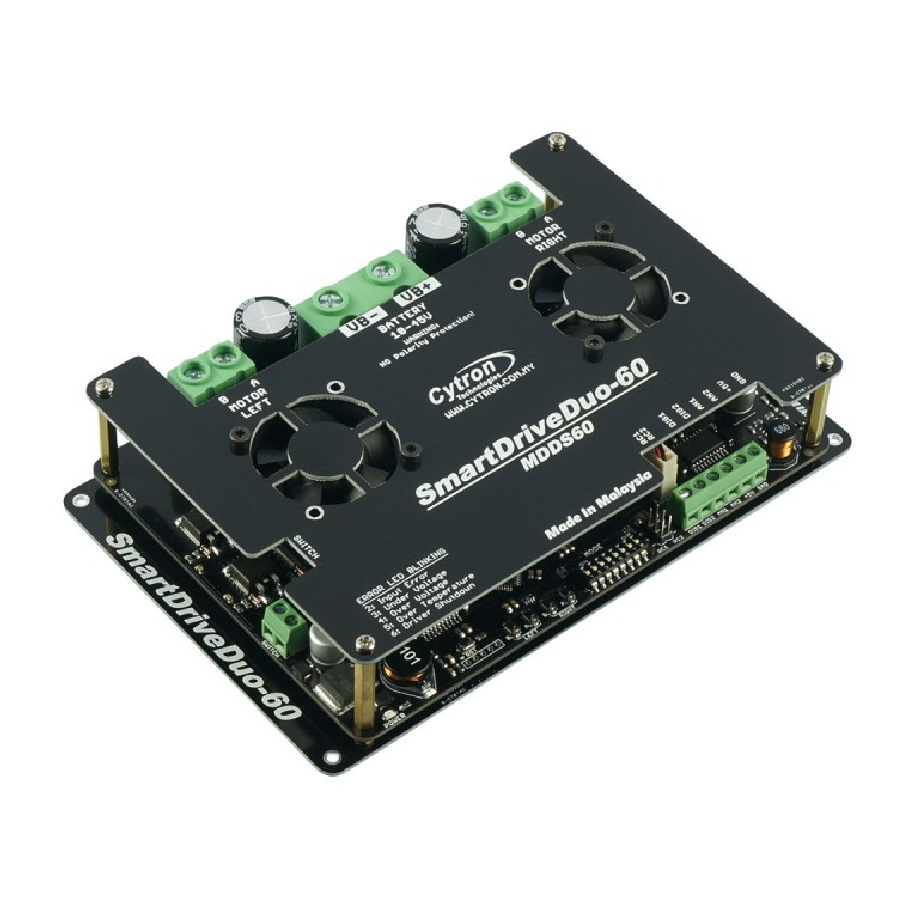

Features
It is DC Brush motor Driver, not for brushless motor
Single power operation just connects power to battery input.
Dual Channels, it can drive two brush motor independently, or mixed.
Operating modes: RC (RC servo signal), Analog, PWM, simplified and packetized UART.
Support Signed magnitude and Locked Anti-phase in PWM mode.
Top cover comes with two DC brushless fans to cool the driver.
Two manual/test buttons for each channel.
Two output indicator LEDs for each channel.
Power, Error indicator, RUN status (Left and Right) LEDs
On board reset button to restart the MCU after changing operation mode.
Specification
| Arduino Shield | NO- uses wire connection |
| Battery Protection Mode | Yes |
| Operating Modes | PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: Yes Analog: Yes, RC Servo Signal: Yes |
| Continuous Current (A) | 60 |
| Cooling Fan | Yes |
| LED Indicator | Yes |
| No. of Channels | 2 |
| Operating Voltage (VDC) | 10V to 45V |
| Peak Current (A) | 100 |
| Polarity Protection | No |
| Dimensions in mm (LxWxH) | 190 x 121 x 45 |
| Over-Current Protection (A) | Yes |
| Thermal Protection | Yes |
| Weight (gm) | 400 |
