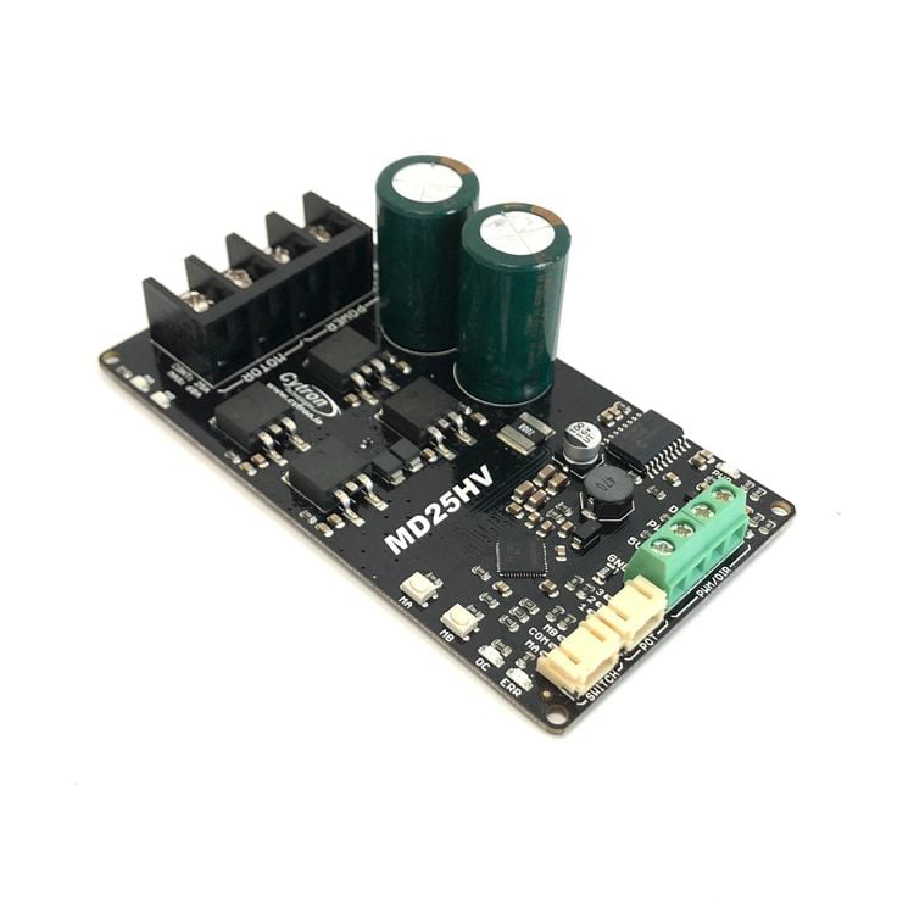

The Cytron 25A 7V-58V DC motor driver with Switch and Potentiometer Control (MD25HV POT) is a high voltage single channel bidirectional motor driver for DC motor from 7V to 58V. With discrete NMOS H-Bridge design, this motor driver is able to support 25A continuously without an additional heatsink.
Features
Bidirectional control for one brushed DC motor.
Maximum Motor Current: 25A continuous, 60A peak
5V output for the host controller (250mA max)
Buttons for quick testing.
LEDs for motor output state.
WM frequency up to 40kHz (Output frequency is fixed at 16kHz).
Overcurrent protection with active current limiting.
Temperature protection.
Undervoltage shutdown.
Specification
| Supply Voltage | 7 – 58 V. |
| Continuous Current | 25 A |
| Peak Current | 60 A. |
| Potentiometer Analog Input Voltage | 0 ~ 5 V. |
| Logic Input voltage | Low – 0 ~ 0.8V. High – 3 ~ 30V. |
| PWM Input Frequency | 40 KHz. |
| PWM output Frequency | 16 KHz |
