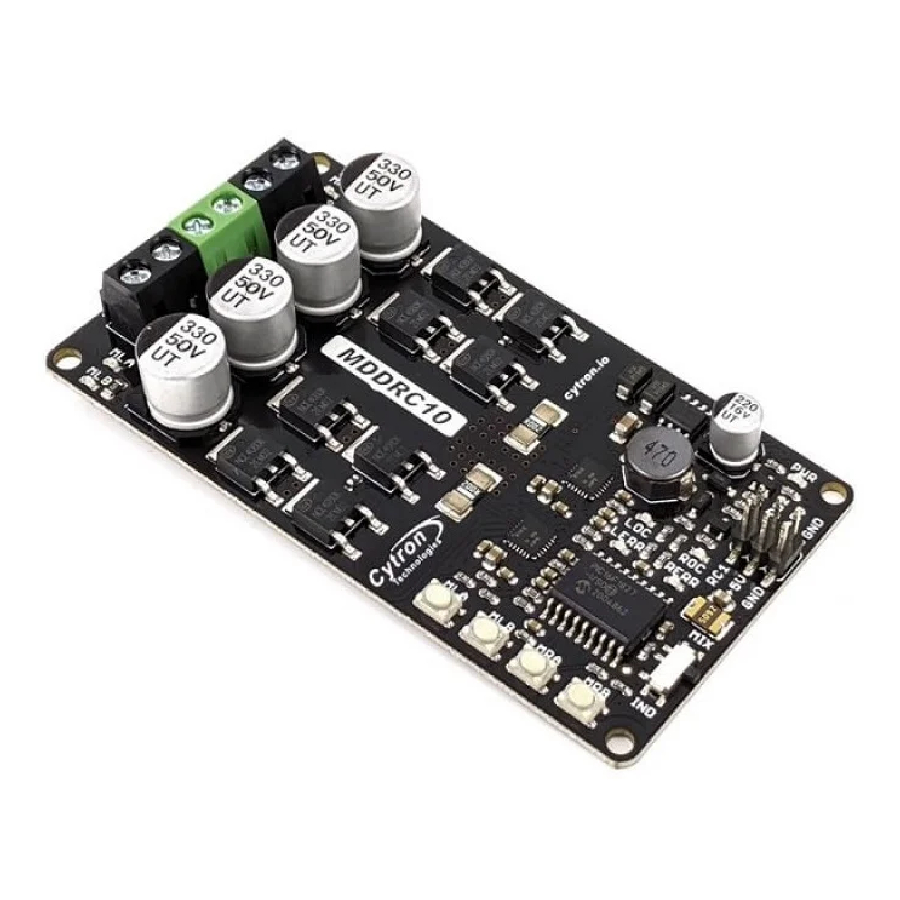

Selectable mixed-mode allows the differential drive motors to be controlled from a throttle (forward-reverse) and a steering channel. Onboard switching regulator which produces 5V output is also available to power the RC receiver. This eliminates the need for an extra battery eliminator circuit (BEC).
Features:
Plug & play, controlled from RC directly.
Auto calibration upon power-up.
Selectable mixed or independent input mode.
Bidirectional control for two brushed DC motors.
Onboard 5V switching regulator to power the RC receiver (500mA max).
Buttons for quick testing.
LEDs for motor output state.
20kHz motor output PWM frequency.
Overcurrent protection with active current limiting.
Temperature protection.
Undervoltage shutdown.
Specification
| Operating Voltage (VDC) | 7 V ~ 30 V |
| Max. Motor Current | 10 A continuous, 30 A peak |
| Motor Output PWM Frequency | 20 kHz |
| RC Input Voltage (RC1 & RC2) | Low Level: 0-0.7 V High Level: 1.5-15 V |
| Output Maximum Current | 0-500 mA |
| Length (mm) | 89 |
| Width (mm) | 48.3 |
| Height (mm) | 5 |
| Mounting Hole Diameter (mm) | M3 |
| Weight (gm) | 30 |
