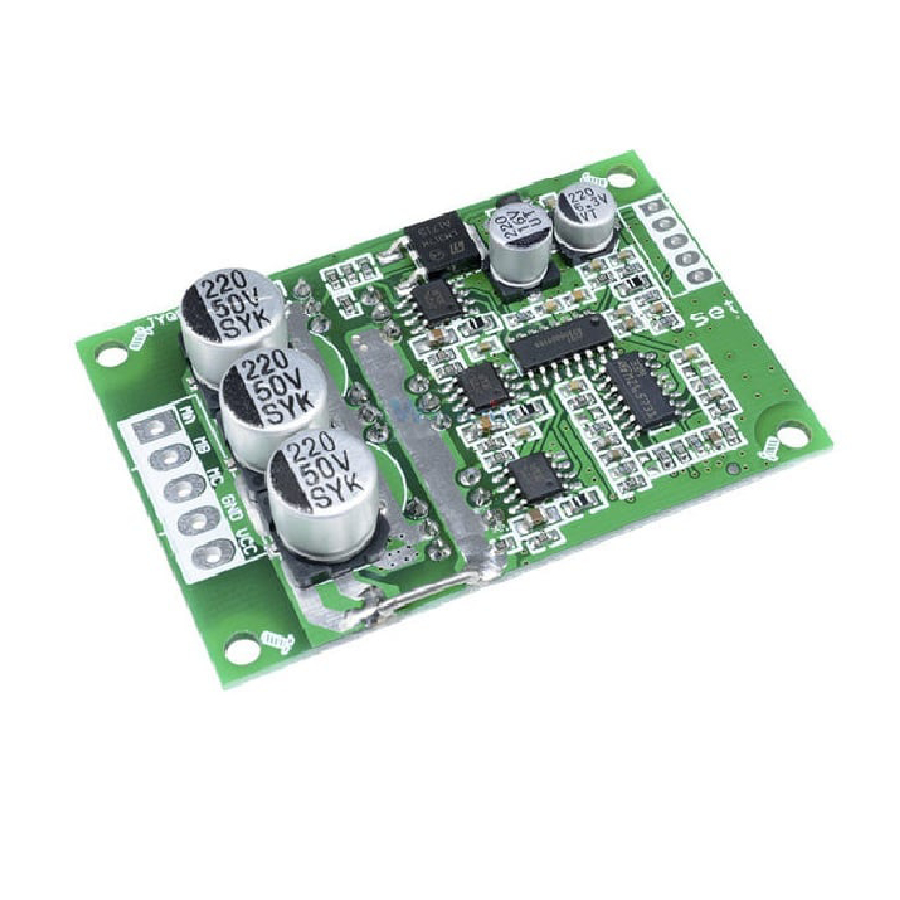

Pin Connection
5V -Driver board internal output voltage
Signal – Motor speed pulse signal output port, 5V pulse signal.
Control port:
Z/F– Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is a reverse direction.
VR -Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm, connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
GND—Used for Drive board internal control.
Power port :
MA —-motor phase A
MB —- motor phase B
MC—- motor phase C
GND—-DC-
VCC—-DC +
Features
Protection: Overload protection, locked-rotor protection, over-current protection
Analog voltage speed regulation: 0-5V
Operating temperature: -40 ~ +85℃
Drive power: ≤ 500W (related working voltage)
Speed control function: voltage speed regulation or single-chip
microcomputer control PWM speed regulation
Specification
| Voltage Range(V) | 12 – 36 |
| Current handling Capacity(A) | 15 |
| Power handling Capacity(W) | 500 |
| Length (mm) | 63 |
| Width (mm) | 42.5 |
| Height (mm) | 17 |
| Weight (gm) | 30 |
