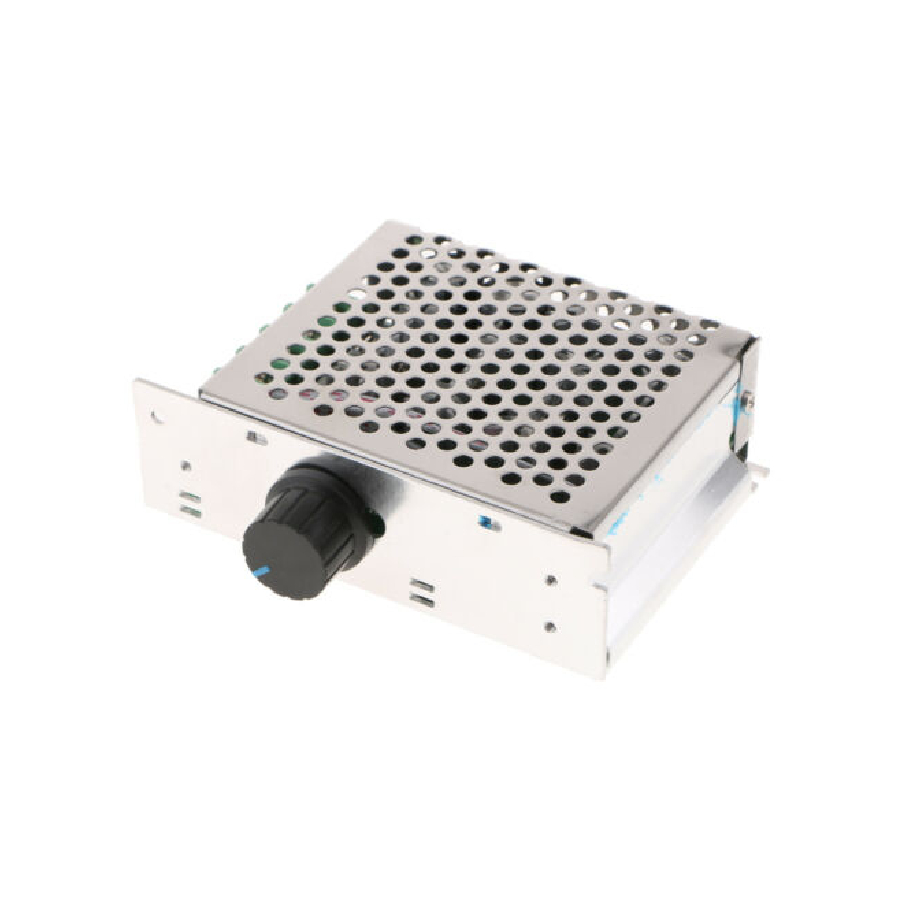

This is a 1500W DC motor PWM speed controller module. The module can control the speed of DC motors up to 1500W providing a current of 30A max. and at operating voltage between 12V to 50VDC. The module comes with a fully shielded enclosure to provide rigidity to the module and allow a better heat transfer across the module. The module has 5 high-quality MOSFETs and 2 hig-quality capacitors. There is an onboard fuse, which protects the module from overvoltage.
Specification
| Model | CCM6DS |
| Input Voltage | 12-50VDC |
| Output Current | 30A (Max.) |
| Length (mm) | 77 |
| Width (mm) | 110 |
| Height (mm) | 37 |
| Weight (gm) | 185 |
